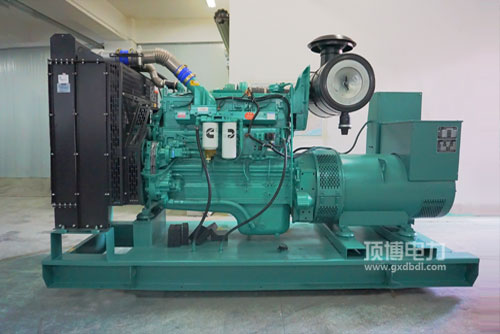

224-310KW康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯电站用热车机汽油城市发展性好: 先进集体的汽油管控软件设备，独具的STC、ESTC 等级分类管控软件设备，特殊的方案的气缸顶面烧室，直流电压喷射汽油，充分地地做雾化，烧充分地地。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯来发电用启倾向瞬态使用性能不错: 好看的启倾向整体化设计，能默契配合康明斯与众不同的EFC设计，控制要求高，异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电厂用打火机升瓦数高: 总体结构设计紧凑型.外观摆置恰当，运作稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷cpu型号 QSNT. QSK19. QSK38. QSK50符合国内非道路施工第一关键期及北美地区Tier2. Tier 3进行排放法律需求。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件而犯性好， 汽车发驱力加载及检修保養便民，人工利润高。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

电功率范围之内 Power Range   224-310KW技术要求 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L形状长宽 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净质量水平 Dry Weight   940kg

224-310KW康明斯发电机组用发起机的优缺点：占地小， 减小比低， 格栅板大气升温，便于打火，位移车截电源适配器的安全可靠。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

发起机尺寸	通常用最大功率(kW)Prime Power	紧急功效kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
